# Reading Images & Video

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
import cv2 as cv

# Reading Image
# img = cv.imread('./Resources/Photos/cat.jpg')
# img = cv.imread('./Resources/Photos/cat.jpg', cv.IMREAD_GRAYSCALE) # Read as Gray directly
# cv.imshow('Cats', img)

# cv.waitKey(0)

# Reading Video
capture = cv.VideoCapture('./Resources/Videos/dog.mp4')

while True:
    has_frame, frame = capture.read()

    if has_frame:
        cv.imshow('Video', frame)
        if cv.waitKey(20) & 0xFF==ord('d'):
            break
    else:
        break

capture.release()

cv.destroyAllWindows()

# Write Images

1
2
3
4
5
6
7
8
9
10
11
12

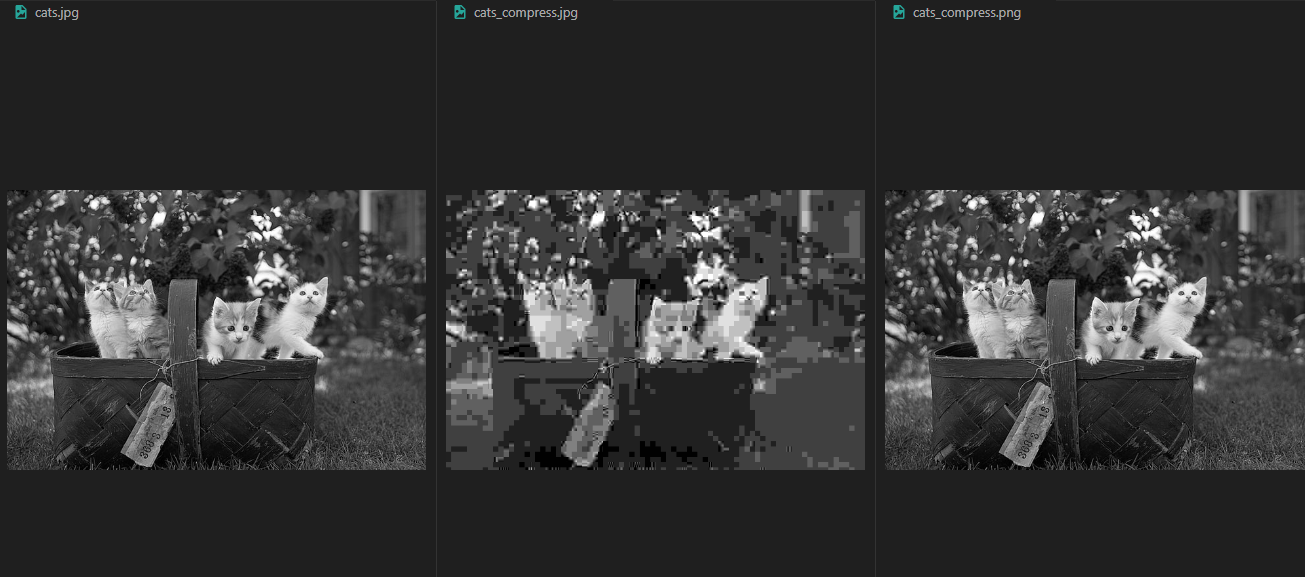

import cv2 as cv
img = cv.imread('./Resources/Photos/cats.jpg', cv.IMREAD_GRAYSCALE)

cv.imwrite('cats.jpg', img)

# JPG is lossy compression
# The quality of JPG image is 0-100, where 0 being the worst quality and the most compressed
cv.imwrite('cats_compress.jpg', img, [cv.IMWRITE_JPEG_QUALITY, 0])

# PNG is lossless compression
# The PNG image compression is 0-9, and 9 being the most compressed
cv.imwrite('cats_compress.png', img, [cv.IMWRITE_PNG_COMPRESSION, 9])

# Resizing and Rescaling Frames

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
import cv2 as cv

def rescale_frame(frame, scale=0.75):
    # height, width = frame.shape[0], frame.shape[1]
    # [height, width] = frame.shape[:2]
    (height, width) = frame.shape[:2]
    dimensions = (int(width * scale), int(height * scale))

    return cv.resize(frame, dimensions, interpolation=cv.INTER_AREA)

# Rescale Image
# img = cv.imread('./Resources/Photos/cat.jpg')
# cv.imshow('Cats', img)
# rescaled_img = rescale_frame(img)
# cv.imshow('Rescaled Cats', rescaled_img)

# cv.waitKey(0)


# Rescale Video
capture = cv.VideoCapture('./Resources/Videos/dog.mp4')

while True:
    has_frame, frame = capture.read()

    if has_frame:
        cv.imshow('Video', frame)
        rescaled_frame = rescale_frame(frame, 0.5)
        cv.imshow('Rescaled Video', rescaled_frame)
        if cv.waitKey(20) & 0xFF==ord('d'):
            break
    else:
        break

capture.release()
cv.destroyAllWindows()

# Drawing Shapes & Putting Text

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import cv2 as cv
import numpy as np

blank = np.zeros((500,500,3), dtype='uint8')
cv.imshow('Blank', blank)

# 1. Paint the image a certain colour
blank[200:300, 300:400] = 0,0,255
cv.imshow('Green', blank)

# 2. Draw a Rectangle
cv.rectangle(blank, (0,0), (blank.shape[1]//2, blank.shape[0]//2), (0,255,0), thickness=-1)
cv.imshow('Rectangle', blank)

# 3. Draw A circle
cv.circle(blank, (blank.shape[1]//2, blank.shape[0]//2), 40, (0,0,255), thickness=-1)
cv.imshow('Circle', blank)

# 4. Draw a line
cv.line(blank, (100,250), (300,400), (255,255,255), thickness=3)
cv.imshow('Line', blank)

# 5. Write text
cv.putText(blank, 'Hello World!', (0,225), cv.FONT_HERSHEY_TRIPLEX, 1.0, (0,255,0), 2)
cv.imshow('Text', blank)

cv.waitKey(0)

# Essential Functions

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

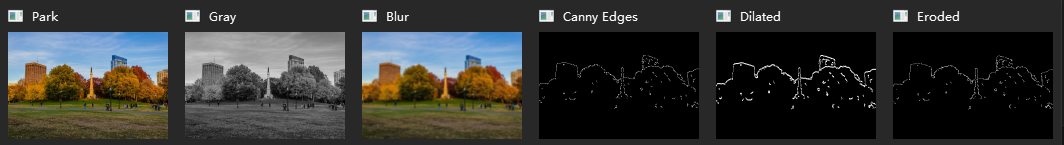

import cv2 as cv

# Read in an image
img = cv.imread('./Resources/Photos/park.jpg')
cv.imshow('Park', img)

# Converting to grayscale
gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

# Blur
blur = cv.GaussianBlur(img, (7,7), cv.BORDER_DEFAULT)
cv.imshow('Blur', blur)

# Edge Cascade
canny = cv.Canny(blur, 125, 175)
cv.imshow('Canny Edges', canny)

# Dilating the image
dilated = cv.dilate(canny, (7,7), iterations=3)
cv.imshow('Dilated', dilated)

# Eroding
eroded = cv.erode(dilated, (7,7), iterations=3)
cv.imshow('Eroded', eroded)

# Resize
resized = cv.resize(img, (500,500), interpolation=cv.INTER_CUBIC)
cv.imshow('Resized', resized)

# Cropping
cropped = img[50:200, 200:400]
cv.imshow('Cropped', cropped)

# Image Transformations

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
import cv2 as cv
import numpy as np

img = cv.imread('./Resources/Photos/park.jpg')
cv.imshow('Park', img)

# Translation
def translate(img, x, y):
    transMat = np.float32([[1,0,x],[0,1,y]])
    dimensions = (img.shape[1], img.shape[0])
    return cv.warpAffine(img, transMat, dimensions)

translated = translate(img, -100, 100)
cv.imshow('Translated', translated)

# Rotation
def rotate(img, angle, rotPoint=None):
    (height,width) = img.shape[:2]

    if rotPoint is None:
        rotPoint = (width//2,height//2)

    rotMat = cv.getRotationMatrix2D(rotPoint, angle, 1.0)
    dimensions = (width,height)

    return cv.warpAffine(img, rotMat, dimensions)

rotated = rotate(img, -45)
cv.imshow('Rotated', rotated)

rotated_rotated = rotate(img, -90)
cv.imshow('Rotated Rotated', rotated_rotated)

# Resizing
resized = cv.resize(img, (500,500), interpolation=cv.INTER_CUBIC)
cv.imshow('Resized', resized)

# Flipping
flip = cv.flip(img, -1)
cv.imshow('Flip', flip)

# Cropping
cropped = img[200:400, 300:400]
cv.imshow('Cropped', cropped)


cv.waitKey(0)

# Contour Detection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

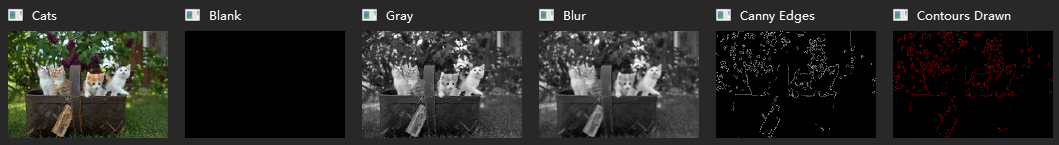

import cv2 as cv
import numpy as np

img = cv.imread('./Resources/Photos/cats.jpg')
cv.imshow('Cats', img)

blank = np.zeros(img.shape, dtype='uint8')
cv.imshow('Blank', blank)

gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

blur = cv.GaussianBlur(gray, (5,5), cv.BORDER_DEFAULT)
cv.imshow('Blur', blur)

canny = cv.Canny(blur, 125, 175)
cv.imshow('Canny Edges', canny)

# ret, thresh = cv.threshold(gray, 125, 255, cv.THRESH_BINARY)
# cv.imshow('Thresh', thresh)

# contours, hierarchies = cv.findContours(thresh, cv.RETR_LIST, cv.CHAIN_APPROX_SIMPLE)
contours, hierarchies = cv.findContours(canny, cv.RETR_LIST, cv.CHAIN_APPROX_SIMPLE)
print(f'{len(contours)} contour(s) found!')

cv.drawContours(blank, contours, -1, (0,0,255), 1)
cv.imshow('Contours Drawn', blank) # 380 contour(s) found!

cv.waitKey(0)

# Color Spaces

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
import cv2 as cv
import matplotlib.pyplot as plt

img = cv.imread('./Resources/Photos/park.jpg')
cv.imshow('BGR', img)

# plt.imshow(img)
# plt.show()

# BGR to RGB
rgb = cv.cvtColor(img, cv.COLOR_BGR2RGB)
cv.imshow('RGB', rgb)

# plt.imshow(rgb)
# plt.show()

# BGR to Grayscale
gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

# BGR to HSV
hsv = cv.cvtColor(img, cv.COLOR_BGR2HSV)
cv.imshow('HSV', hsv)

# BGR to L*a*b
lab = cv.cvtColor(img, cv.COLOR_BGR2LAB)
cv.imshow('LAB', lab)

# HSV to BGR
lab_bgr = cv.cvtColor(lab, cv.COLOR_LAB2BGR)
cv.imshow('LAB -> BGR', lab_bgr)

cv.waitKey(0)

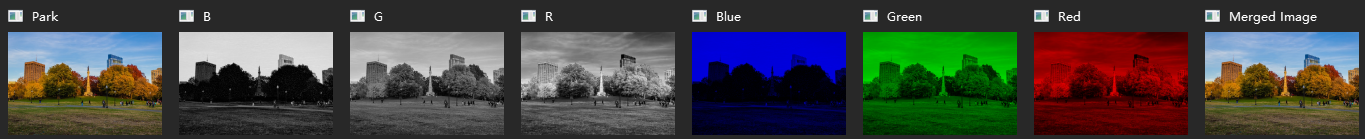

# Color Channels

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
import cv2 as cv
import numpy as np

img = cv.imread('./Resources/Photos/park.jpg')
cv.imshow('Park', img)

blank = np.zeros(img.shape[:2], dtype='uint8')

b,g,r = cv.split(img)
cv.imshow('B', b)
cv.imshow('G', g)
cv.imshow('R', r)

blue = cv.merge([b,blank,blank])
green = cv.merge([blank,g,blank])
red = cv.merge([blank,blank,r])
cv.imshow('Blue', blue)
cv.imshow('Green', green)
cv.imshow('Red', red)

print(img.shape) # (427, 640, 3)
print(b.shape) # (427, 640)
print(g.shape) # (427, 640)
print(r.shape) # (427, 640)

merged = cv.merge([b,g,r])
cv.imshow('Merged Image', merged)

cv.waitKey(0)

# Blurring

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

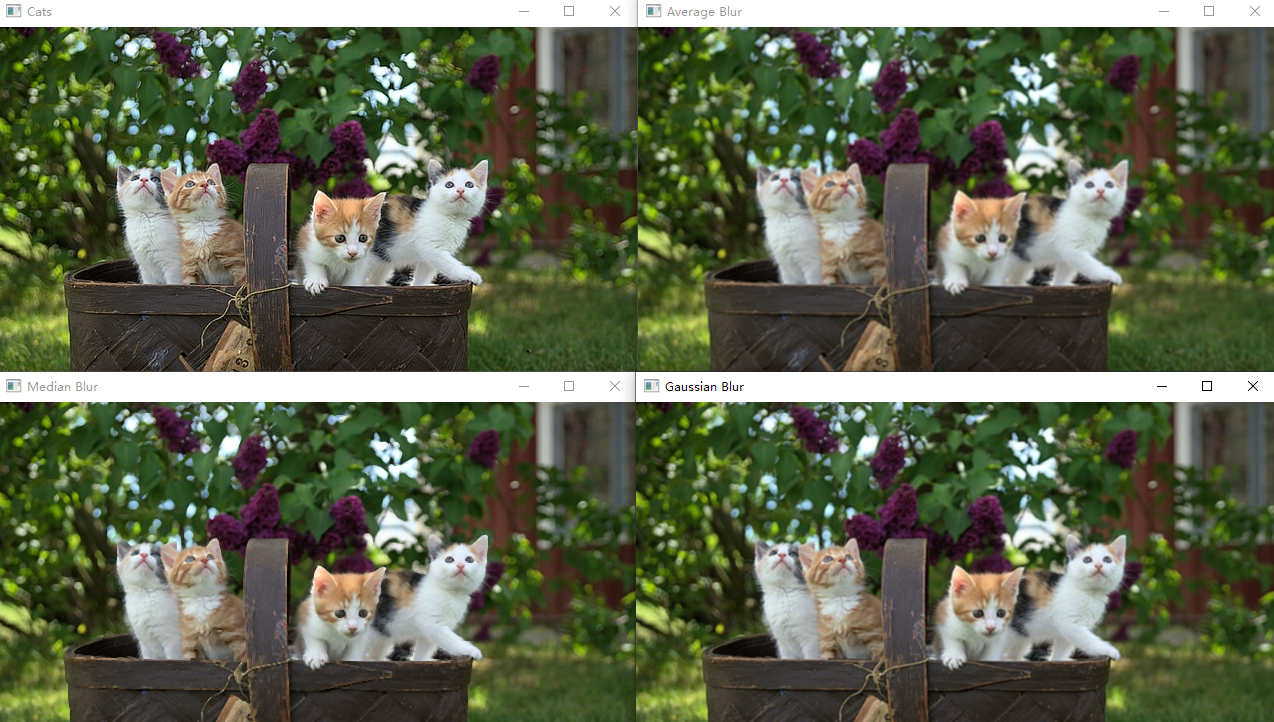

img = cv.imread('./Resources/Photos/cats.jpg')
cv.imshow('Cats', img)

# Averaging
average = cv.blur(img, (3,3))
cv.imshow('Average Blur', average)

# Gaussian Blur
gauss = cv.GaussianBlur(img, (3,3), 0)
cv.imshow('Gaussian Blur', gauss)

# Median Blur
median = cv.medianBlur(img, 3)
cv.imshow('Median Blur', median)

# Bilateral
bilateral = cv.bilateralFilter(img, 10, 35, 25)
cv.imshow('Bilateral', bilateral)

cv.waitKey(0)

# BITWISE operations

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

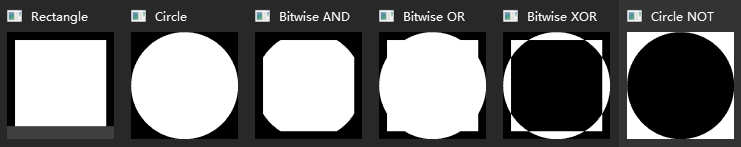

import cv2 as cv
import numpy as np

blank = np.zeros((400, 400), dtype='uint8')

rectangle = cv.rectangle(blank.copy(), (30, 30), (370, 370), 255, -1)
circle = cv.circle(blank.copy(), (200, 200), 200, 255, -1)

cv.imshow('Rectangle', rectangle)
cv.imshow('Circle', circle)

# bitwise AND --> intersecting regions
bitwise_and = cv.bitwise_and(rectangle, circle)
cv.imshow('Bitwise AND', bitwise_and)

# bitwise OR --> non-intersecting and intersecting regions
bitwise_or = cv.bitwise_or(rectangle, circle)
cv.imshow('Bitwise OR', bitwise_or)

# bitwise XOR --> non-intersecting regions
bitwise_xor = cv.bitwise_xor(rectangle, circle)
cv.imshow('Bitwise XOR', bitwise_xor)

# bitwise NOT
bitwise_not = cv.bitwise_not(circle)
cv.imshow('Circle NOT', bitwise_not)

cv.waitKey(0)

# Masking

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

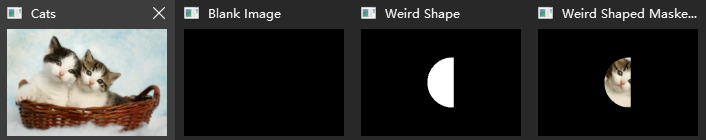

import cv2 as cv
import numpy as np

img = cv.imread('./Resources/Photos/cats 2.jpg')
cv.imshow('Cats', img)

blank = np.zeros(img.shape[:2], dtype='uint8')
cv.imshow('Blank Image', blank)

circle = cv.circle(blank.copy(), (img.shape[1]//2 + 45, img.shape[0]//2), 100, 255, -1)

rectangle = cv.rectangle(blank.copy(), (30, 30), (370, 370), 255, -1)

weird_shape = cv.bitwise_and(circle, rectangle)
cv.imshow('Weird Shape', weird_shape)

masked = cv.bitwise_and(img, img, mask=weird_shape)
cv.imshow('Weird Shaped Masked Image', masked)

cv.waitKey(0)

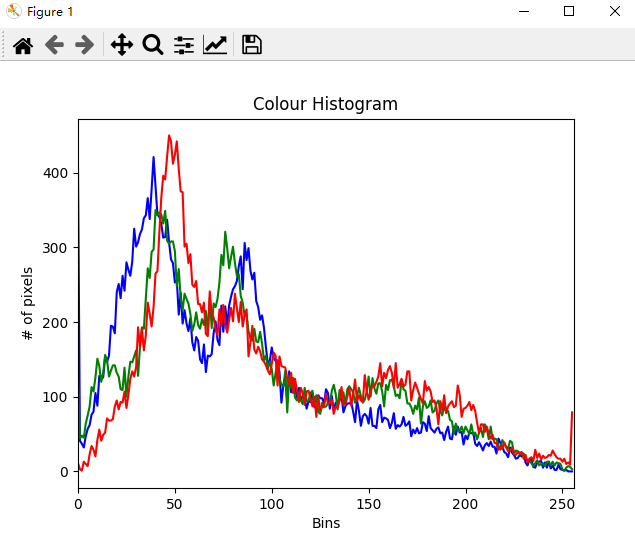

# Histogram Computation

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
import cv2 as cv
import numpy as np
import matplotlib.pyplot as plt

img = cv.imread('./Resources/Photos/cats.jpg')
cv.imshow('Cats', img)

blank = np.zeros(img.shape[:2], dtype='uint8')

# gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
# cv.imshow('Gray', gray)

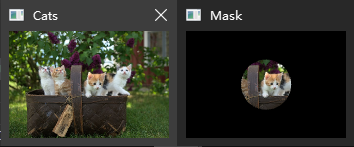

mask = cv.circle(blank, (img.shape[1]//2, img.shape[0]//2), 100, 255, -1)

masked = cv.bitwise_and(img, img, mask=mask)
cv.imshow('Mask', masked)

# Grayscale Histogram
# gray_hist = cv.calcHist([gray], [0], mask, [256], [0,256] )

# plt.figure()
# plt.title('Grayscale Histogram')
# plt.xlabel('Bins')
# plt.ylabel('# of pixels')
# plt.plot(gray_hist)
# plt.xlim([0,256])
# plt.show()

# Colour Histogram
plt.figure()
plt.title('Colour Histogram')
plt.xlabel('Bins')
plt.ylabel('# of pixels')
plt.xlim([0, 256])

colors = ('b', 'g', 'r')
for i, col in enumerate(colors):
    hist = cv.calcHist([img], [i], mask, [256], [0, 256])
    plt.plot(hist, color=col)

plt.show()


cv.waitKey(0)

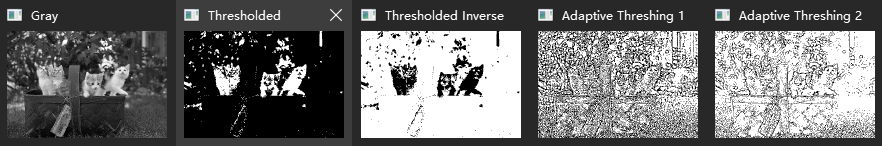

# Thresholding/Binarizing Images

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
import cv2 as cv

gray = cv.imread('./Resources/Photos/cats.jpg', cv.IMREAD_GRAYSCALE)
cv.imshow('Gray', gray)

# Thresholding
threshold, thresh = cv.threshold(gray, 150, 255, cv.THRESH_BINARY)
cv.imshow('Thresholded', thresh)

threshold, thresh_inv = cv.threshold(gray, 150, 255, cv.THRESH_BINARY_INV)
cv.imshow('Thresholded Inverse', thresh_inv)


# Adaptive Thresholding
adaptive_thresh_1 = cv.adaptiveThreshold(
    gray, 255, cv.ADAPTIVE_THRESH_GAUSSIAN_C, cv.THRESH_BINARY, 11, 3)
cv.imshow('Adaptive Threshing 1', adaptive_thresh_1)

adaptive_thresh_2 = cv.adaptiveThreshold(
    gray, 255, cv.ADAPTIVE_THRESH_GAUSSIAN_C, cv.THRESH_BINARY, 11, 9)
cv.imshow('Adaptive Threshing 2', adaptive_thresh_2)

cv.waitKey(0)

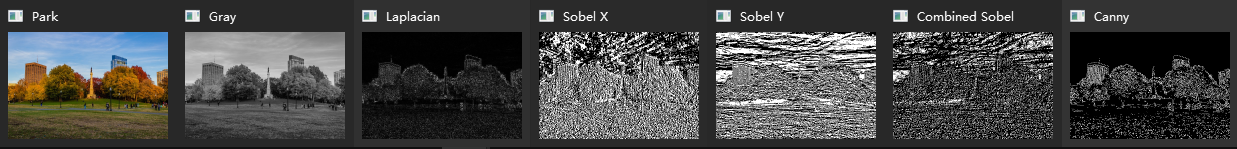

# Gradient Edge Detection

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
import cv2 as cv
import numpy as np

img = cv.imread('./Resources/Photos/park.jpg')
cv.imshow('Park', img)

gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

# Laplacian
lap = cv.Laplacian(gray, cv.CV_64F)
lap = np.uint8(np.absolute(lap))
cv.imshow('Laplacian', lap)

# Sobel
sobelx = cv.Sobel(gray, cv.CV_64F, 1, 0)
sobely = cv.Sobel(gray, cv.CV_64F, 0, 1)
combined_sobel = cv.bitwise_or(sobelx, sobely)

cv.imshow('Sobel X', sobelx)
cv.imshow('Sobel Y', sobely)
cv.imshow('Combined Sobel', combined_sobel)

canny = cv.Canny(gray, 150, 175)
cv.imshow('Canny', canny)
cv.waitKey(0)
Edited on
